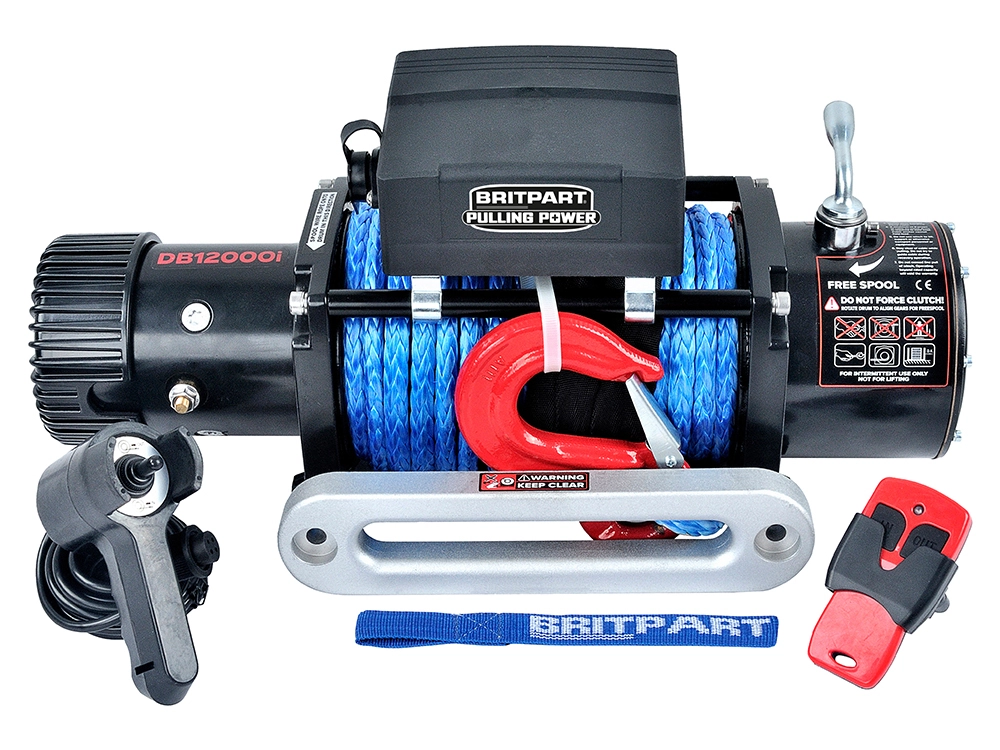

Britpart Pulling Power Winch
Code: DB12000iR
12,000lbs / Dyneema rope / 12 volt

Description
Powerful and reliable electric winches.

If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.

These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.

Features

3.6Kw (4.8Hp) heavy-duty series wound DC motor
Weather and dustproof contactor controls for longer life and improved amperage draw
Planetary gear system for fast line speed
Automatic load-holding brake
Free spooling
Power in and power out
Low electric current
Hardened drum
Dyneema rope with break force - 25,800lbs
24 month warranty
Specification
Rated line pull - single line - 12,000lbs / 5,443kg
Gear reduction ratio - 294:1
Motor (series wound) - 4.8Hp / 3.6Kw
Drum size (D x L) - 2.5 x 9" / 67 x 228mm
Cable supplied - 0.43" x 91.9' 11mm x 28m - Dyneema rope with break force 25,800lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77" / 548 x 167 x 299mm
Net weight - 72.8lbs / 33.0kg
Mounting bolt pattern - 10 x 4.5" / 254 x 114.3mm

A full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.

Together with the winches you’ll be able to ‘Get to where you want to go!’

Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
